CR8 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance.


The CR8 (Professional) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.04. CR8's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR8 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.


1. Adopt full-band balanced LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.
Adopt full-band balanced LED light source

2. Silicon photodiode array (double 32 array) sensor

The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
Mastering the core technology and fully compatible with international standards.
Silicon photodiode array (double 32 array) sensor

3. Grating Spectrophotometric technology

Using grating spectrophotometric technology, it has higher resolution and makes color measurement more accurate.
Grating Spectrophotometric technology

4. Place the base safely to ensure that the whiteboard is not dirty.
Place the base

5. Professional whiteboard, a promise that will never change color forever.
Professional whiteboard

6. Fast charging

Special fast charging method, low-voltage reminder to charge or use of off-hours to charge, to ensure the capacity and life of the battery (note: frequent repeated charging of the battery is more harmful).
  SuperCharge


7. Novel and fashionable appearance design based on ergonomics

The position of the hand grip and the measurement button are carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.

 Novel and fashionable appearance design based on ergonomics


8. Customize a single measuring aperture to accurately meet the needs of sample measurement

Spectrocolorreader CR8 (Professional) can choose Ø8mm or Ø4mm platform aperture according to your needs to meet your sample measurement needs.

 Single aperture 4/ 8mm optional


9. Massive color card database

The instrument stores 500 standard and 10,000 samples, and the APP synchronously stores a large amount of data, which can quickly check color data, analyze and compare.
Use the App to build your private color database in the cloud. You don't need to carry a heavy color card. You can use CR8 colorreader to find the closest color in multiple color cards anytime and anywhere.

Massive color card database



10. Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment.
Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment.



11. Diversified data display

SpectrocolorreaderCR8 (Professional)can intuitively display reflectance (reflectance at 3 specific wavelength specified by the user) , sample chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset and other data .It is convenient to view and also greatly improves the user's work efficiency.
Diversified data display

12. Use whatever you want

It can be used alone, 3.5inch true color screen can check data at any time, cooperate with SQCX quality management software to facilitate quality monitoring and color data management, with APP to synchronize data at any time, and more application scenarios are waiting for you to discover.

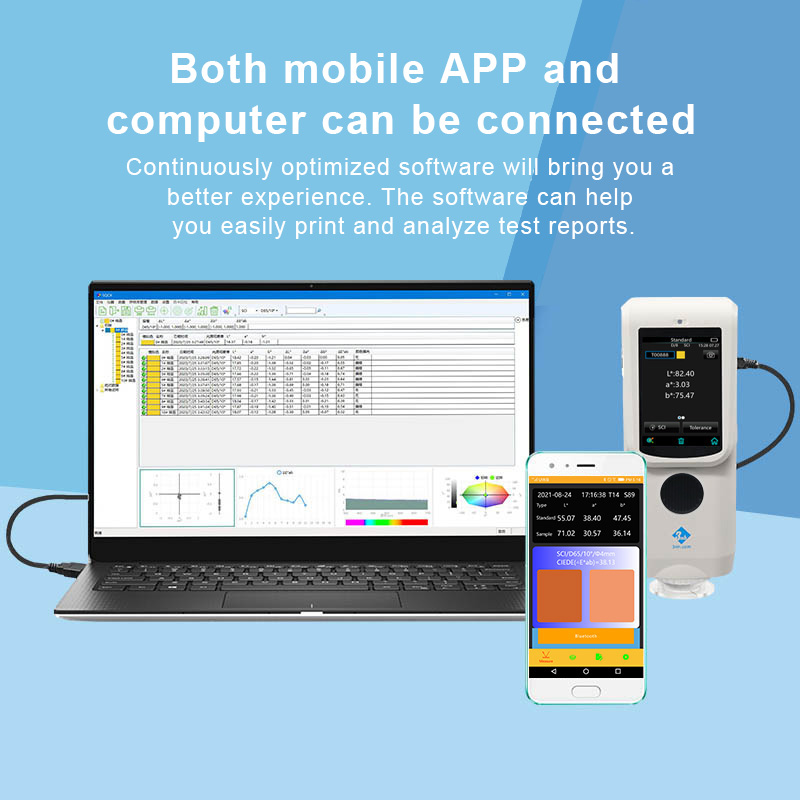

 Both mobile APP and computer can be connected


Specification


Model CR8 (Professional)
Optical geometry D/8 (diffuse illumination, 8° direction reception)
SCI measurement
Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size Φ40mm
Light source Combined full-spectrum LED light source
Spectroscopic method Planar grating
Sensor Silicon photodiode arrays (dual row 32 groups)
Wavelength range 400~700nm
Wavelength interval 10nm
Semiband Bandwidth 10nm
Measurement range L:0~120
Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display
Measurement aperture Single aperture: Φ8mm ( Φ4mm optional)
Focusing method Fixed Focus
Specular component SCI
Color space CIE LAB,XYZ,Yxy,LCh
Color difference formula ΔE*ab,ΔE*00
Other colorimetric indexs Multiple colorimetric indexs are realized through APP
Observer angle 10°
Illuminant D65,A,F2(CWF)
Displayed data Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy 0.01
Measurement time Approx. 1.5s
Repeatability Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
Measurement method Single measurement, average measurement (2~99 times)
Locating method Stabilizer locating
Size LxWxH=81X71X214mm
Weight About 460g
Battery power Lithium battery, 6000 times in 8 hours
Illuminant life span 5 years, more than 3 million times measurements
Display TFT true color 3.5inch, capacitive touch screen
Data port USB, Bluetooth® 5.0
Data storage 500 standard samples, 1,0000 samples , APP mass storage
Language Simplified Chinese, English, Traditional Chinese
Operating temperature range 0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range -20~50℃, 0~85%RH (no condensation)
Standard Accessories Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes. Technical parameters are for reference only, subject to the actual sales of products
