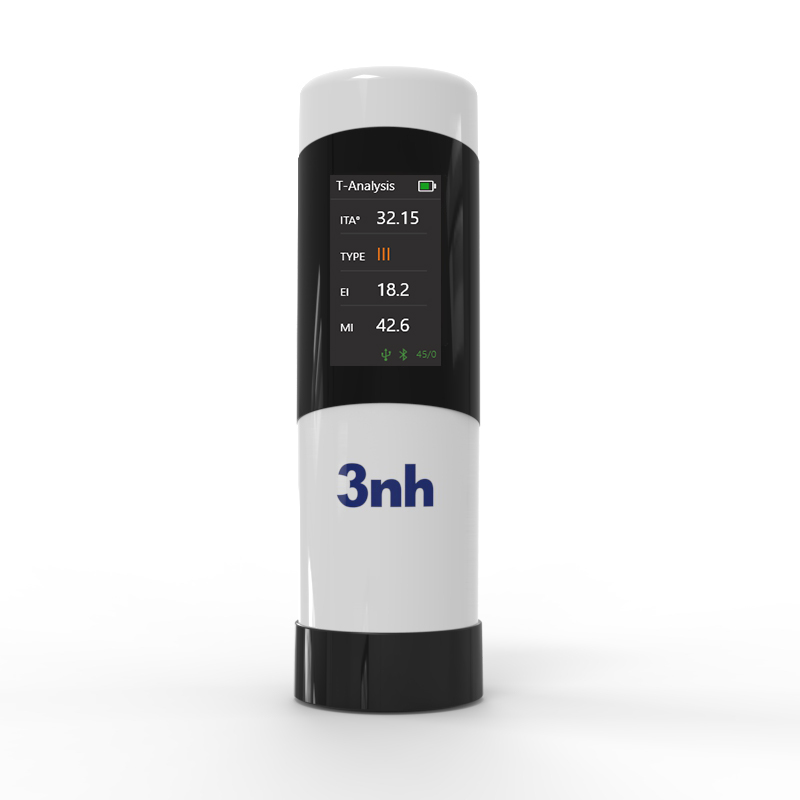

The 3nh PS01 is an entry-level, ultra-portable Skin ColorReader designed for quick skin tone reference, rapid colorimetric evaluation, and cost-effective batch deployment across chain stores and small-to-medium skincare studios. Utilizing a 45/0 circumferential uniform illumination optical system paired with nanometer integrated spectroscopic components, it packs core professional indicators into an ultra-compact body weighing just 88g. The primary advantage of the PS01 is offering quantized skin color data at an accessible price point. By sharing identical core algorithmic indicators—Individual Typology Angle (ITA°), Melanin Index (MI), and Erythema Index (EI)—with higher-end models, PS01 replaces visual estimation with objective metrics, facilitating brand-wide standardized skin analysis.

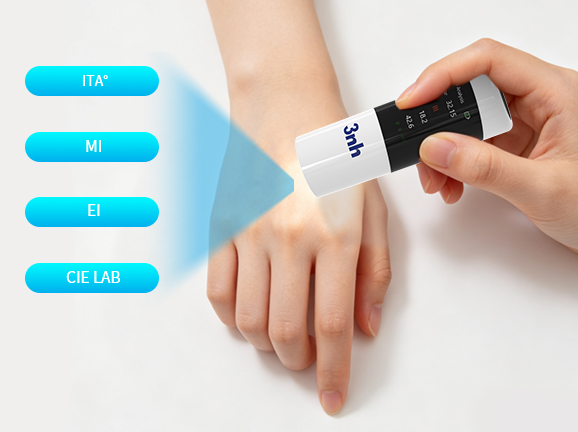

Outputs ITA° (Individual Typology Angle), skin typology classification, Melanin Index (MI), and Erythema Index (EI). Core analytical metrics align with high-end models for reliable daily skin assessment.
Requires only 1.0 second per test, minimizing client waiting time and optimizing workflow efficiency during peak store hours.

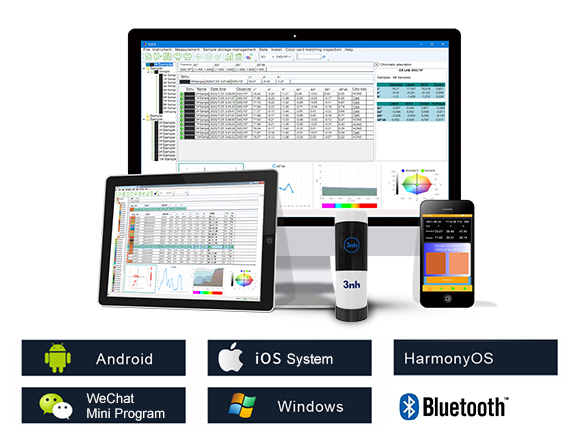

Compatible with Android, iOS, Windows, WeChat Mini-Programs, and HarmonyOS. Features automatic white-board calibration and average measurement mode (2–99 tests) to minimize accidental operator errors.

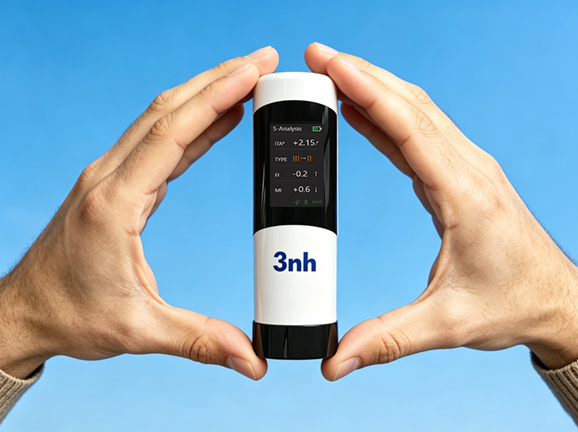

Budget-friendly pricing allows franchise brands and multi-store chains to deploy dedicated skin detection equipment across all branches, building unified service standards.
Skincare Studios & Salons: Build customer skin archives and quantify pre/post treatment results at a low operational cost.
Skincare Content Creators: Acquire multi-dimensional skin data to bolster review credibility.
Beauty Consultants & Sales: Ultra-portable design for instant skin measurements during customer consultations.
Efficacy Testing: Track subtle skin tone shifts to verify cosmetic formulation efficacy.
Model | PS01 Skin ColorReader |
Illumination Geometry | 45/0 (45° circumferential uniform illumination, 0° reception); Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
Features | Portable skin color measurement; convenient assessment of Individual Typology Angle (ITA°), skin type, Melanin Index (MI), and Erythema Index (EI). Highly compact. |
Integrating Sphere Size | / |
Light Source | Full-spectrum LED light source |
Spectrophotometric Mode | Nanometer integrated spectroscopic components |
Sensor | Silicon photodiode array (dual-row 16 groups) |
Wavelength Range | 400–700 nm |
Measuring Aperture | Φ8 mm |
Specular Component | / |
Color Spaces | CIE LAB |
Color Difference Formulas | ΔE*ab |
Other Colorimetric Indices | ITA°, Skin Typology Angle, Erythema Index (EI), Melanin Index (MI) |
Display Resolution | 0.1 |
Observer Angle | 10° |
Illuminant | D65 |
Display Features | Sample colorimetric values, color difference, PASS/FAIL result, color simulation, color bias, reflectance (partially via mobile APP) |
Measurement Time | Approx. 1.0s |
Repeatability | Colorimetric value: ΔE*ab within 0.05 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration) |
Accuracy Guarantee | No requirement |
Measurement Method | Single measurement, Average measurement (2–99 times via mobile APP) |
Locating Method | / |
Dimensions | Ø32X100mm |
Weight | Approx. 88 g |
Battery Capacity | Lithium battery; up to 12,000 continuous measurements on a full charge |
Light Source Lifespan | 5 years or over 3 million measurements |
Display Screen | 1.14-inch IPS full-color screen |
Interfaces | USB, Bluetooth |
Data Storage | Expandable massive storage via mobile APP |
Software Support | Android, iOS, Windows, WeChat Mini-Program, HarmonyOS |
Calibration | Automatic Whiteboard Calibration |
Languages | Simplified Chinese, English |
Operating Environment | 0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m |
Storage Environment | -20–50°C, 0–85% RH (non-condensing) |
Standard Accessories | Data Cable, User Manual, Calibration Box, Quality Management Software (downloadable), APP (downloadable) |
Optional Accessories | USB Micro Printer, Powder Test Box |
Remarks | Technical specifications are for reference only and subject to actual sales products. |
